Kia Sedona: Occupant Detection System(ODS)
Type A
Type B
Your vehicle is equipped with an occupant detection system in the front passenger's seat.
The occupant detection system is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not. Only the front passenger front air bag is controlled by the Occupant Detection System.

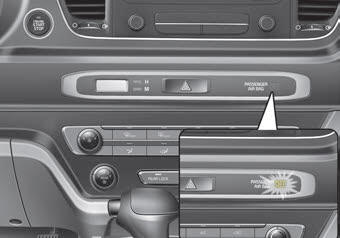

Do not put anything in front of the passenger air bag OFF indicator.
- Main components of the occupant detection system
- Condition and operation in the front passenger occupant detection system
SRS components and functions
The SRS consists of the following components :
(1) Driver's front air bag module
(2) Passenger's front air bag module
(3) Side air bag modules
(4) Curtain air bag modules
(5) Retractor ...
Main components of the occupant detection system
A detection device located within the front passenger seat cushion.
An electronic system which determines whether the passenger air bag systems
should be activated or deactivated.
A indicato ...
