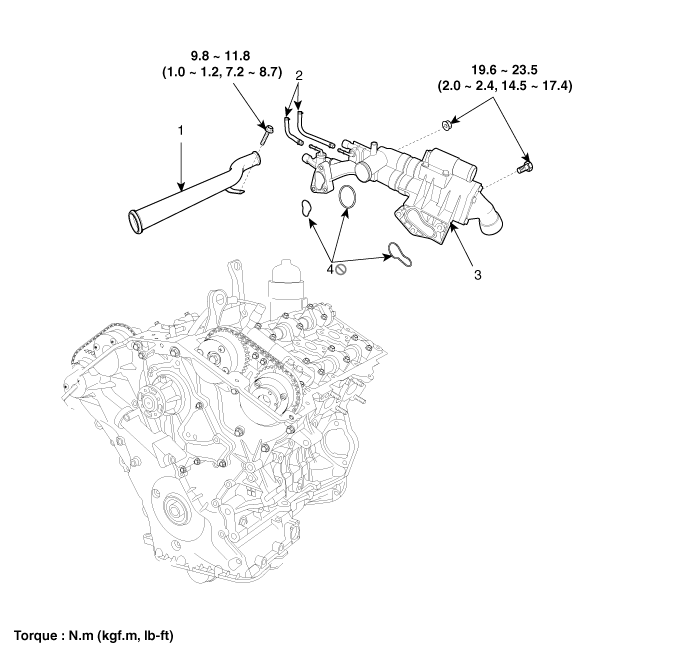

Components

1. Water pipe
2. Throttle body coolant hose & pipe
3. Water temperature control assembly
4. O-ring
