Kia Sedona: 35R Clutch Control Solenoid Valve(35R/C_VFS) Components and Components Location - Automatic Transaxle Control System - Automatic Transaxle System - Kia Sedona YP Service ManualKia Sedona: 35R Clutch Control Solenoid Valve(35R/C_VFS) Components and Components Location

Third generation YP (2014-2025) / Kia Sedona YP Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Components and Components Location

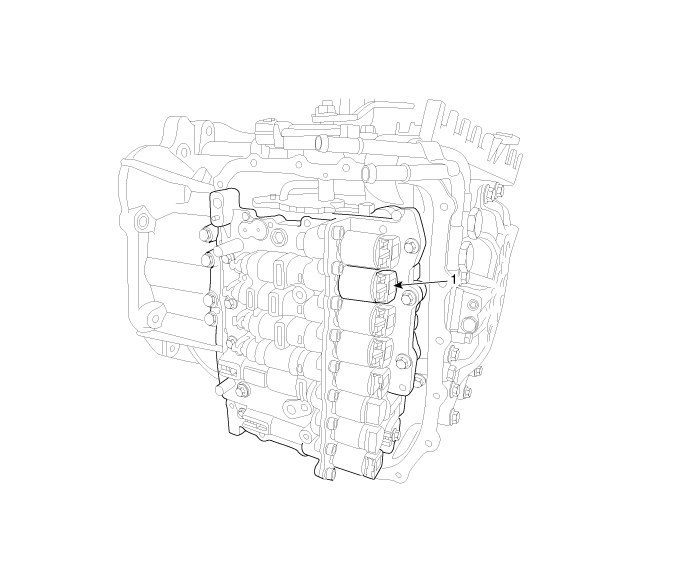

Component Location

1. 35R Clutch control solenoid valve (35R/C_VFS)
35R Clutch Control Solenoid Valve(35R/C_VFS) Specifications
Specification Item SpecificationControl typeN/H (Normal High)Control pressure kpa (kgf/cm², psi)"500.14 ~ 9.81 (5.1 ~ 0.1, 72.54 ~ 1.42)"Current value (mA)50 ~ 850Coil resistance(Ω)5.1 ± 0.3 ...

35R Clutch Control Solenoid Valve(35R/C_VFS) Description and Operation
Description • 35R clutch control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to solenoid valve, hydraulic pressure of 35R clutc ...
