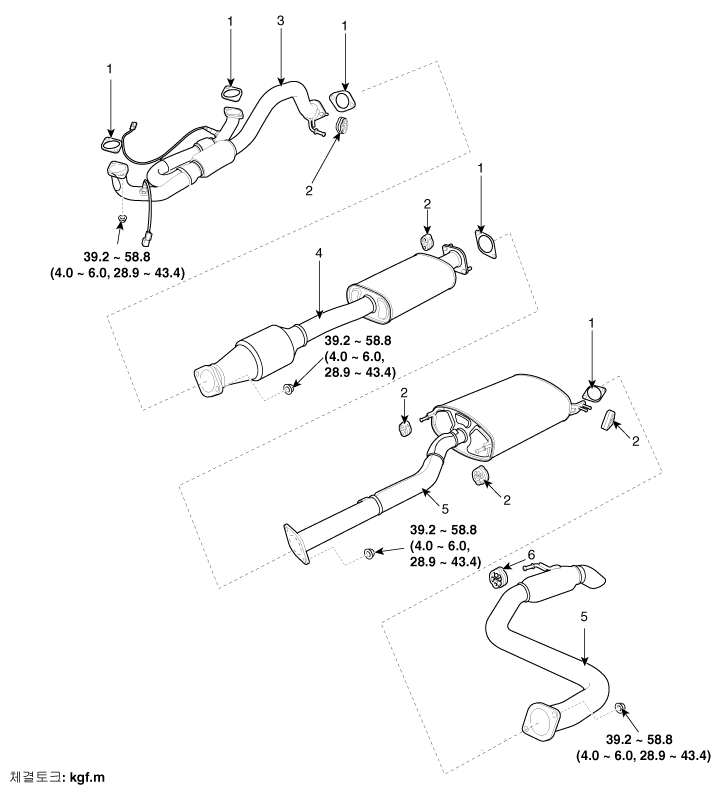

Components

1. Gasket
2. Hanger
3. Front muffler
4. Catalytic converter & Center muffler assembly
5. Rear muffler
6. Tail muffler
