Kia Sedona: Indicator light

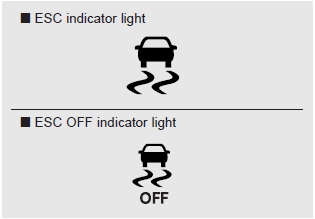

When ignition switch is turned to ON, the indicator light illuminates, then goes off if the ESC system is operating normally.
The ESC indicator light blinks whenever ESC is operating or illuminates when ESC fails to operate.
The ESC OFF indicator light comes on when the ESC is turned off with the button.
WARNING - Tire/ Wheel size
When replacing tires and wheels, make sure they are the same size as the original tires and wheels installed. Driving with varying tire or wheel sizes may diminish any supplemental safety benefits of the VSM system.
WARNING - Electronic stability control
Drive carefully even though your vehicle has Electronic Stability Control. It can only assist you in maintaining control under certain circumstances.
ESC operation off
ESC OFF state
This car has 2 kinds of ESC off states.
If the engine stops when ESC is off, ESC remains off. Upon restarting the engine,
the ESC will automatically turn on again.
ESC off state 1 ...
ESC OFF usage
When driving
ESC should be turned on for daily driving whenever possible.
To turn ESC off while driving, press the ESC OFF button while driving on
a flat road surface.
WARNING - Operat ...
