Kia Sedona: Sunroof Switch Components and Components Location - Sun Roof - Body Electrical System - Kia Sedona YP Service ManualKia Sedona: Sunroof Switch Components and Components Location

Third generation YP (2014-2021) / Kia Sedona YP Service Manual / Body Electrical System / Sun Roof / Sunroof Switch Components and Components Location

Components

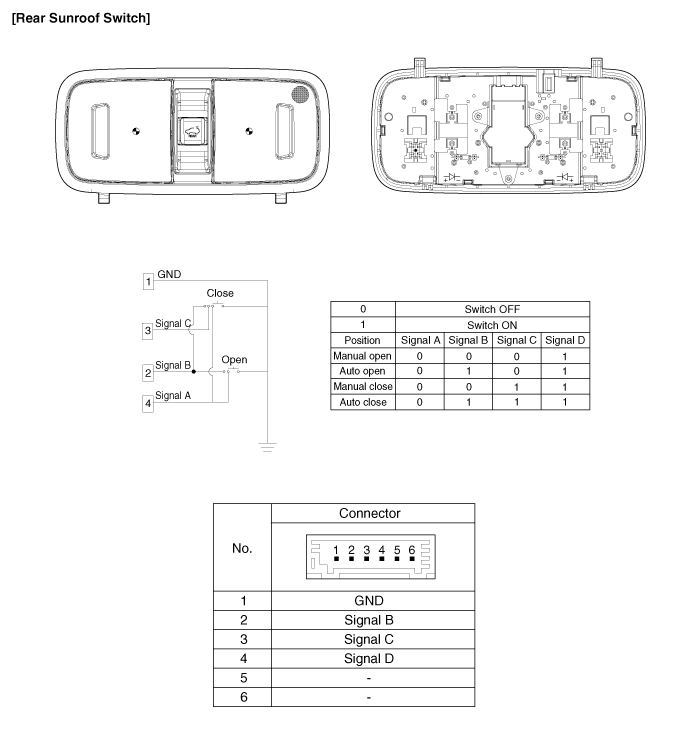

Schematic Diagrams
Circuit Diagram Connector Pin Information No.Motor ConnectorSunroof Wiring Connector1Battery 1GND 12Open alarmRear lock switch3GND 1IGN4Rear lock switchSignal C5-Signal A6Signal CBattery 17Signa ...

Sunroof Switch Repair procedures
Inspection [Front Sunroof Switch] 1. Disconnect the negative (-) battery terminal. 2. Remove the overhead console lamp assembly (A) after loosening 2 screws. 3. Check for continuity betwe ...
