Kia Sedona: Operating condition

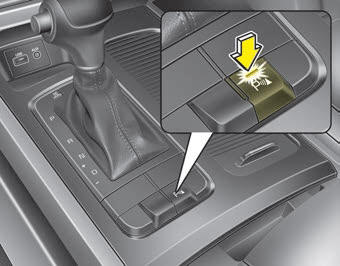

- This system activates when the parking assist button is pressed with the
Engine Start/Stop Button ON.
- The parking assist button turns on automatically and activates the parking
assist system when you shift the gear to the R (Reverse) position.
- The sensing distance while backing up is approximately 100 cm (39 in.) when
you are driving less than 10 km/h (6.2 mph).
- The sensing distance while moving forward is approximately 100 cm (39 in.)
when you are driving less than 10 km/h (6.2 mph).
- When more than two objects are sensed at the same time, the closest one
will be recognized first.
✽ NOTICE
The system may not detect and object if the distance from the object is already
less than approximately 25 cm (10 in.) when the system is turned ON.
✽ NOTICE
The indicator may differ from the illustration as objects or sensors status.
If the indicator blinks, the system should be checked by an authorized Kia dealer. ...
