Kia Sedona: Components and Components Location - AC Inverter System - Body Electrical System - Kia Sedona YP Service ManualKia Sedona: Components and Components Location

Third generation YP (2014-2020) / Kia Sedona YP Service Manual / Body Electrical System / AC Inverter System / Components and Components Location

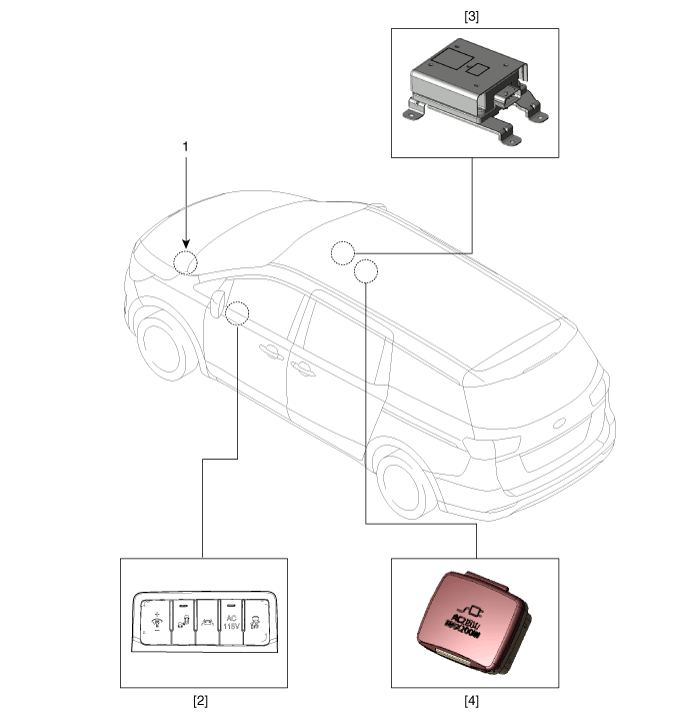

Component Location

1. Battery
2. AC inverter switch
3. AC inverter unit
4. AC inverter outlet

Specification ItemSpecificationRated VoltageDC 12.5VOperating voltageDC 12.2 ~ 15.3VOperating temperature-40°C ~ 75°COutput voltageAC 198 ~ 242V (rms)Output frequency60 ± 6 HzRated power200W ( ...

Description and Operation
Description An inverter is a device that transforms the DC voltage from the battery into an AC voltage (115V). The inverter can power various electrical devices that consume 150W or less, inclu ...

Other Information:

Schematic Diagrams
Circuit Diagram ...
