Kia Sedona: Components and Components Location - ESC(Electronic Stability Control) System - Brake System - Kia Sedona YP Service ManualKia Sedona: Components and Components Location

Third generation YP (2014-2020) / Kia Sedona YP Service Manual / Brake System / ESC(Electronic Stability Control) System / Components and Components Location

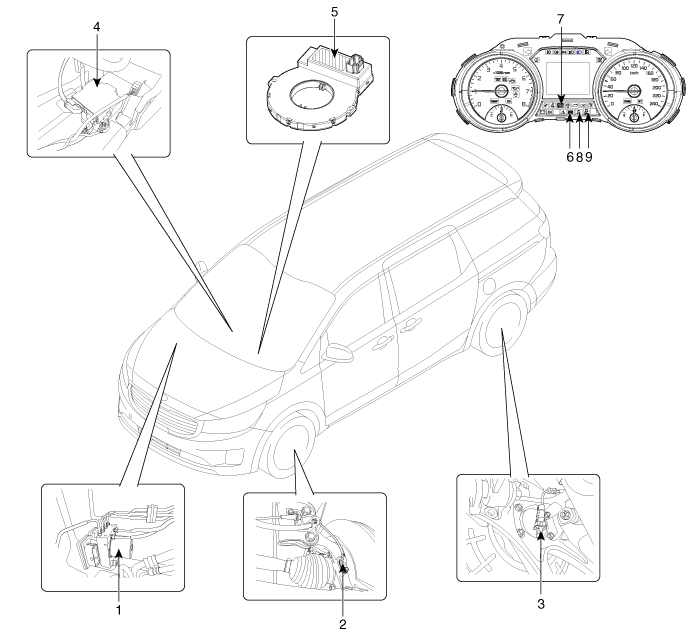

Components

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral G sensor
5. Steering Angle Senser
6. ABS Warning lamp
7. Parking brake/EBD warning lamp
8. ESC Function/Warning lamp
9. ESC OFF lamp
