Components

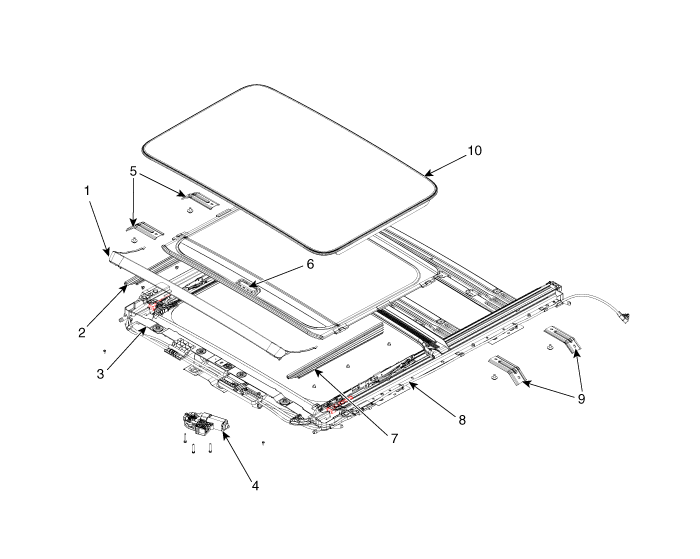

[Front]

1. Deflector
2. Front frame bracket [RH]
3. Motor assembly
4. Sunroof frame assembly
5. Front frame bracket [LH]
6. Mechanism cover
7. Mechanism
8. Rear frame bracket
9. Drain channel
10. Sunshade paner assembly
11. Glass panel assembly

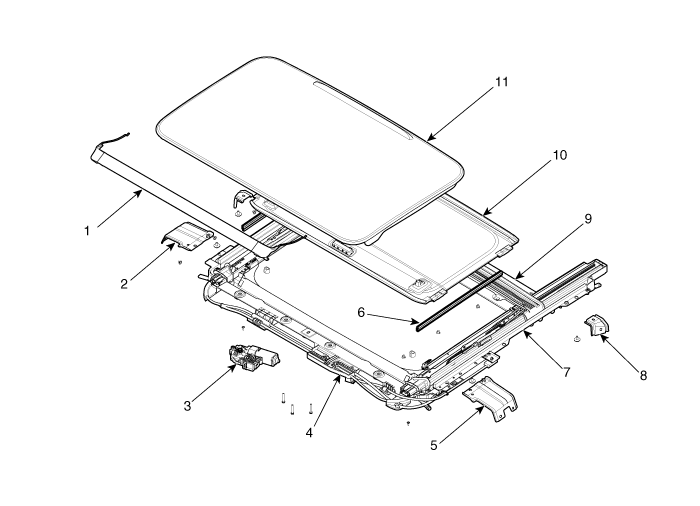

[Rear]

1. Deflector
2. Mechanism cover [RH]
3. Sunroof frame assembly
4. Motor assembly
5. Frame bracket [RH]
6. Sunshade
7. Mechanism cover [LH]
8. Mechanism
9. Frame bracket [LH]
10. Glass panel assembly
