Kia Sedona: Front windshield wiper blade
Type A

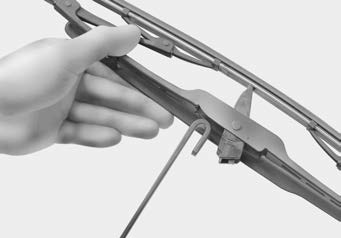

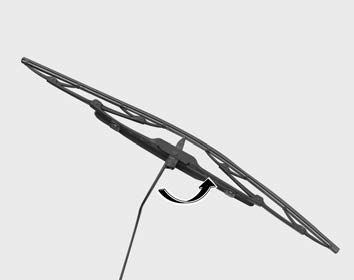

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.
CAUTION - Wiper arms
Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

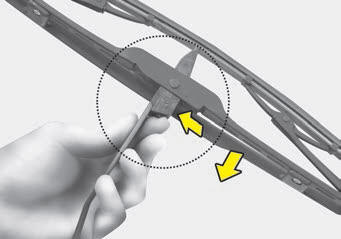

2. Compress the clip and slide the blade assembly downward.
3. Lift it off the arm.
4. Install the blade assembly in the reverse order of removal.
Type B

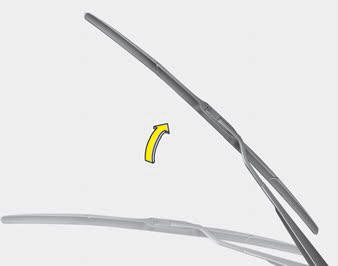

1. Raise the wiper arm.

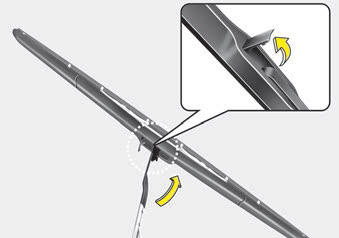

2. Turn the wiper blade clip. Then lift up the blade clip.

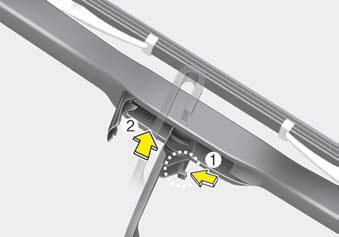

3. Push the clip (1) and push up the wiper arm (2).

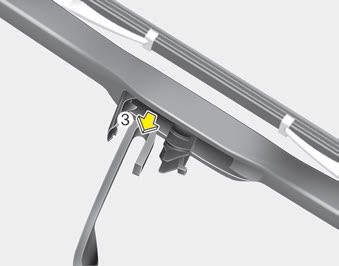

4. Push down the wiper arm (3) and install the new blade assembly in the reverse order of removal.
5. Return the wiper arm on the windshield.
Blade replacement
When the wipers no longer clean adequately, the blades may be worn or cracked,
and require replacement.
To prevent damage to the wiper arms or other components, do not attempt to move
the wipers ...
Rear window wiper blade
1. Raise the wiper arm and pull out the wiper blade assembly.
2. Install the new blade assembly by inserting the center part into the slot
in the wiper arm until it clicks into place.
3. Make ...
