Kia Sedona: Schematic Diagrams
Third generation YP (2014-2026) / Kia Sedona YP Service Manual / Engine Electrical System / Smart Cruise Control System / Schematic Diagrams
| Trouble Symptom Charts |

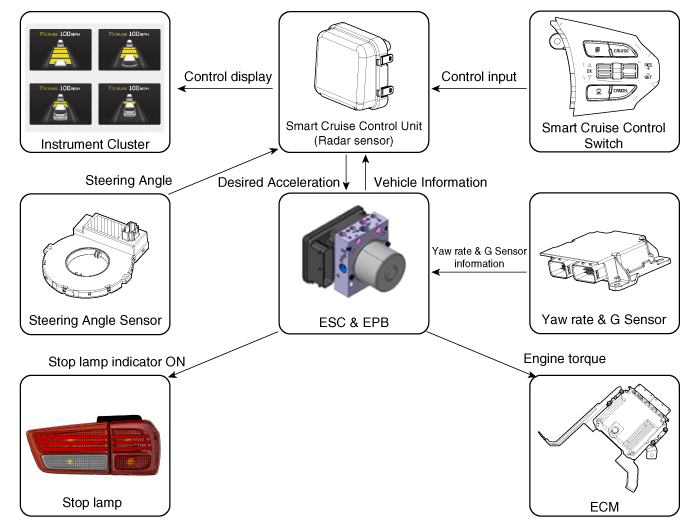

Component Parts And Function Outline
| Component part | Function |
| Cruise Control Switch | Input the set speed and distance to the SCC ECU. |
| Instrument Cluster | Display various information inputted from SCC. |
| Smart Cruise Control Unit | Recognize and track the vehicle ahead. Calculate the target speed and distance Request the acceleration and retardation to ESP |
| VDC (HECU) | Automatic braking and request the engine torque control to the engine (ECM) Request the stop lamp indicator ON |
| Engine (ECM) | Control the engine torque |
| Stop lamp | Stop lamp indicator ON |
Description and Operation
Description
The smart cruise control system allows a driver to program
the vehicle to control the speed and following distance by detecting the
vehicle ahead without depressing the brake pedal ...
Smart Cruise Control Unit Specifications
Specification
ItemSpecificationPower supply(V)12Operation voltage (V)9 ~ 16
...
Other Information:
CVVT Oil Temperature Sensor (OTS) Description and Operation
Description
Continuous Variable Valve Timing (CVVT) system advances or
retards the valve timing of the intake and exhaust valve in accordance
with the ECM control signal which is calculated by ...
Vehicle data collection and event data recorders
This vehicle is equipped with an event data recorder (EDR). The main purpose
of an EDR is to record, in certain crash or near crash-like situations, such as
an air bag deployment or hitting a road ...
