Kia Sedona: Schematic Diagrams
Third generation YP (2014-2025) / Kia Sedona YP Service Manual / Body Electrical System / Sun Roof / Schematic Diagrams

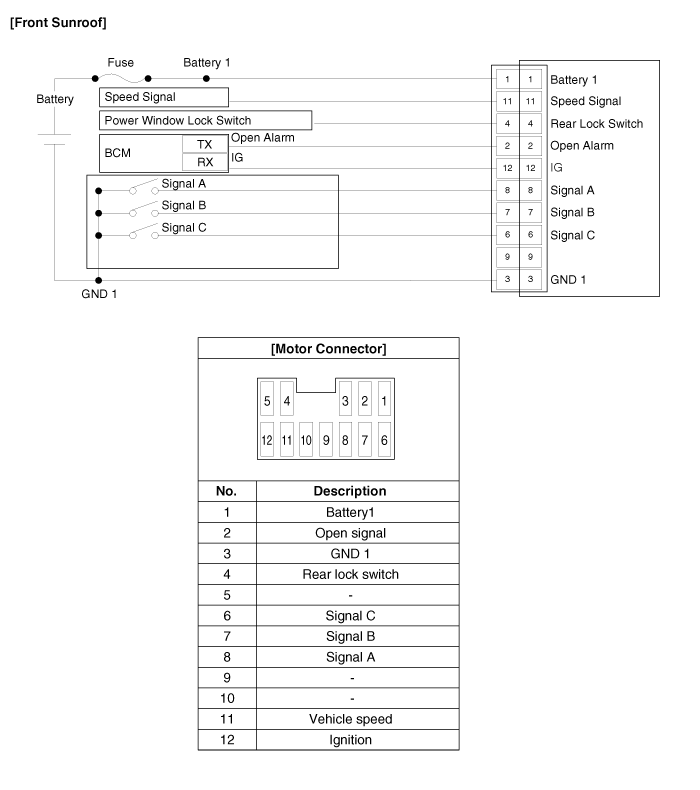

| Circuit Diagram |
Connector Pin Information
| No. | Motor Connector | Sunroof Wiring Connector |
| 1 | Battery 1 | GND 1 |
| 2 | Open alarm | Rear lock switch |
| 3 | GND 1 | IGN |
| 4 | Rear lock switch | Signal C |
| 5 | - | Signal A |
| 6 | Signal C | Battery 1 |
| 7 | Signal B | Open alarm |
| 8 | Signal A | Speed signal |
| 9 | Signal D | Signal D |
| 10 | GND 1 | Signal B |
| 11 | Speed signal | 　 　 |
| 12 | IGN |
Components and Components Location
Component Location
1. Front sunroof2. Front & Rear sunroof switch3. Front sunroof motor & controller4. Rear sunroof5. Rear sunroof switch6. Rear sunroof motor & Controller
...
Sunroof Switch Components and Components Location
Components
...
