Kia Sedona: Repair procedures
Third generation YP (2014-2025) / Kia Sedona YP Service Manual / Body (Interior and Exterior) / Tail Gate / Repair procedures

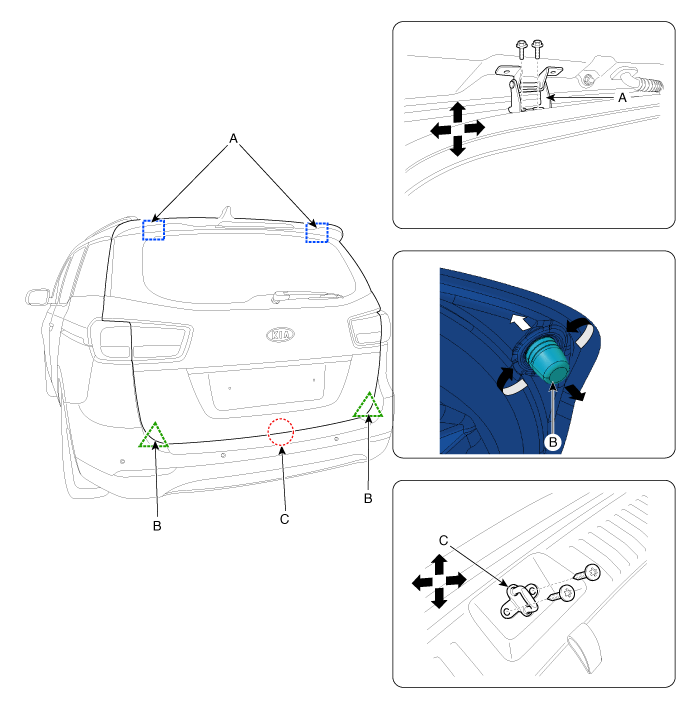

| Adjustment |
| 1. |
After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up and down, or right and left. |
| 2. |
Adjust the tail gate height by turning the tail gate overslam bumpers (B). |
| 3. |
After loosening the tail gate striker (C) mounting bolts,
adjust the tail gate striker by moving it up and down, or right and
left.
|
