| Adjustment |
| 1. |

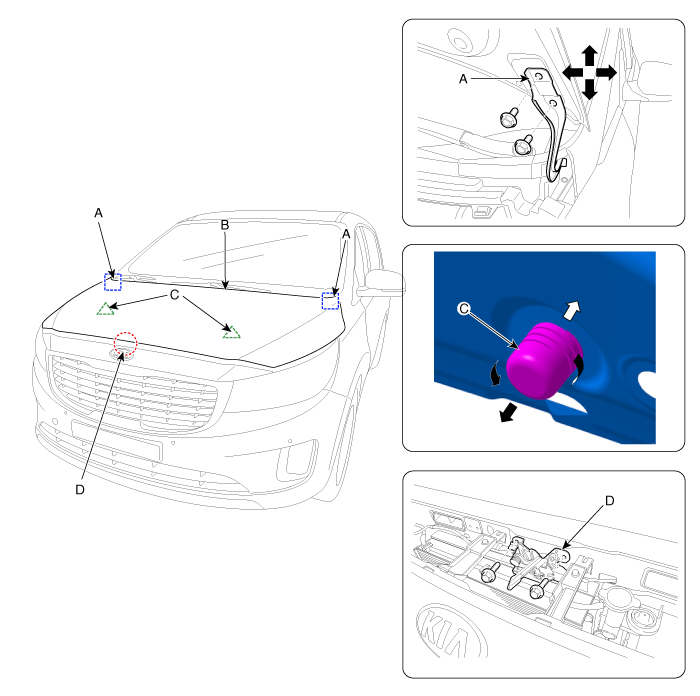

After loosening the hinge (A) mounting bolt, adjust the hood (B) clearance by moving it up and down, or left and right. |
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C). |
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or left and right.
|
