Component Location
[Second Row Seat Assembly]

1. Second Row Seat Cushion Cover [RH]
2. Second Row Center Seat Cushion Cover
3. Second Row Seat Cushion Cover [LH]

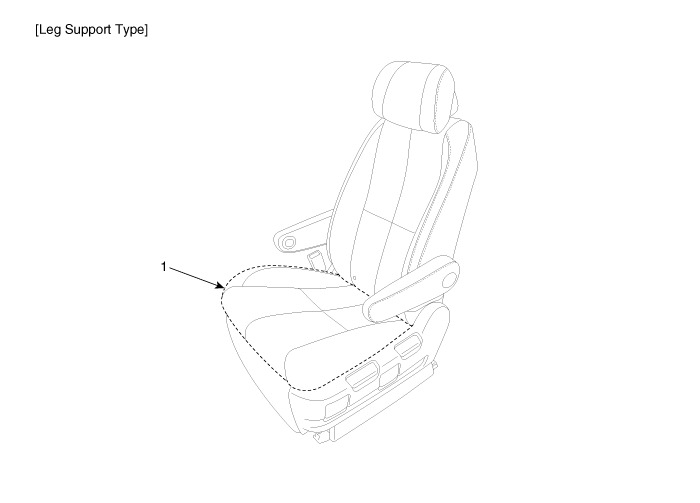

1. Second Row Seat Cushion Cover

[Third Row Seat Assembly]

1. Third Row Seat Cushion Cover [RH]
2. Third Row Seat Cushion Cover [LH]
