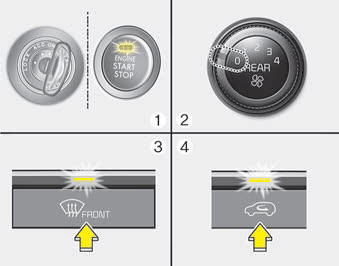

1. Turn the ignition switch to the ON position.
2. Turn the fan speed control knob to the OFF (0) position.
3. Turn the mode selection knob to the defrost position (
).
4. Push the air intake control button (
)
at least 5 times within 3 seconds.
If the battery has been discharged or disconnected, it resets to the defog logic status.
