Kia Sedona: Cylinder Head Components and Components Location - Cylinder Head Assembly - Engine Mechanical System - Kia Sedona YP Service ManualKia Sedona: Cylinder Head Components and Components Location

Third generation YP (2014-2025) / Kia Sedona YP Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Components and Components Location

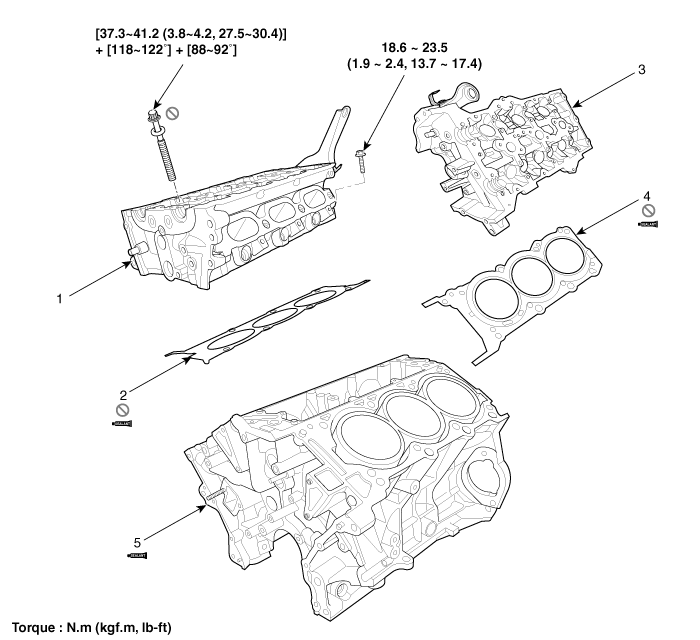

Components

1. RH Cylinder head
2. RH Cylinder head gasket
3. LH Cylinder head
4. LH Cylinder head gasket
5. Cylinder block

1. Camshaft bearing cap
2. Camshaft thrust bearing cap
3. RH Exhaust camshaft
4. RH Intake camshaft
5. RH Exhaust CVVT assembly
6. RH Intake CVVT assembly
7. Mechanical lash adjuster (MLA)
8. Retainer lock
9. Retainer
10. Valve spring
11. Valve stem seal
12. Valve
13. RH Intake camshaft OCV
14. RH Exhaust camshaft OCV
15. RH Cylinder head
16. LH Exhaust camshaft OCV

17. LH Intake camshaft OCV
18. Fuel pump bracket
19. LH Intake camshaft
20. LH Exhaust camshaft
21. LH Intake CVVT assembly
22. LH Intake CVVT assembly
23. LH Cylinder head
