Kia Sedona: Components and Components Location
Third generation YP (2014-2026) / Kia Sedona YP Service Manual / Body (Interior and Exterior) / Interior Trim / Components and Components Location

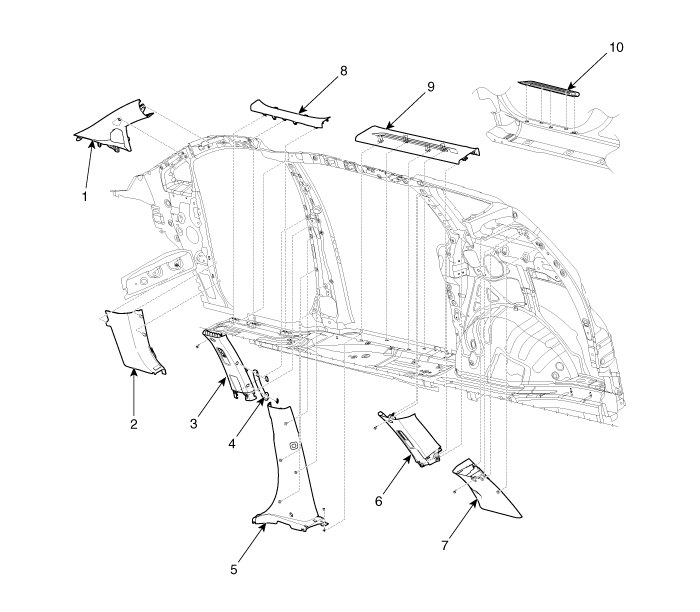

| Components |
| 1. Front pillar trim 2. Cowl side trim 3. Center pillar upper trim 4. Center pillar assist trim 5. Center pillar lower trim | 6. Rear pillar trim 7. Tailgate fillar trim 8. Front door scuff trim 9. Rear door scuff trim 10. Front door step trim |
